Rainproof and Fireproof Azimuth Thruster

Rainproof and Fireproof Azimuth Thruster
Details:
Customization:Available
After-sales Service:1 Years Warranty
Warranty:1 Years After Debugging
Send Inquiry
Description
Project Cases
Send Inquiry

Basic Info.



Model NO. TLAT600DM-P
Material Cu3 or SS316
Blades 3,4,5 or 7
Certification ISO90012000, BV
Transport Package Wooden Box
Trademark Thrustleader
Origin China
HS Code 8487100000
Production Capacity Over 100sets/ Year



Packaging & Delivery



Package Size 2600.00cm * 1600.00cm * 2000.00cm
Package Gross Weight 50000.000kg



Product Description



Basic Info.

Model No. TLAT   Blade Quantity 3,4,5 or 7
Driven Type E-motor/Hydraulic motor/Diesel engine Installation type L-Drive,Z-Drive
Lead time 1-5 months Certificate CCS/DNV-GL/ABS/BV/RINA/LR/CR/RMRS
Transport package Wooden box Weight 300-3000kg
Trademark Thrustleader Orginal Jiangsu, China
HS Code 8487100000 Produce Capacity Over 100 sets per year

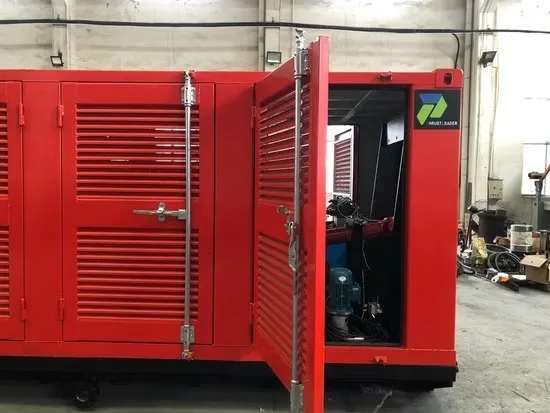

The deck mounted azimuth thruster is a containerized thruster propulsion system that can be placed right on the deck of the vessel or barge. The compact structure, high mobility and easy installation make it very suitable fo r barges, ferries and jack-up vessels. The whole unit can be installed directly on the deck, and it can be equipped a lifting and swing up function.



Features



Compact design and reliable performance
Propeller can be driven by electric motor, diesel engine and hydraulic motor.
Hydraulic system is available.
It can be equipped with a lifting amd swing up function.
The whole unit can be installed on the deck.



Application



Typical applications for self-propelled barge, cable laying dynamic positioning barge, crane or dredger barge, ferry, river vessel and so on.



Specifications



Deck Mounted Azimuth Thruster

Type Max power (kW) Normal Input speed(rpm) Propeller Diameter(mm)
TLAT50DM 40 1800/1500 300-500
TLAT80DM 60 1800/1500 400-600
TLAT100DM 75 1800/1500 450-800
TLAT150DM 110 1800/1500 500-900
TLAT250DM 185 1800/1500/1000 800-1100
TLAT350DM 260 1800/1500/1000 650-1200
TLAT450DM 350 1800/1500/1000 900-1300
TLAT600DM 450 1800/1500/1000 1100-1500
TLAT850DM 670 1800/1500/1000 1300-1650
TLAT1000DM 750 1800/1500/1000/750 1400-1750
TLAT1200DM 900 1500/1000/750 1500-1800
TLAT1400DM 1050 1500/1000/750 1600-1950
TLAT1600DM 1200 1500/1000/750 1700-2000
TLAT1800DM 1350 1500/1000/750 1800-2100
TLAT2000DM 1500 1000/750 1900-2300
TLAT2200DM 1650 1000/750 2000-2500
TLAT2400DM 1800 1000/750 2100-2600
TLAT2700DM 2000 1000/750 2200-2700
TLAT3000DM 2250 1000/750 2300-2800



Certificate

p202502181106192e07b1





About us

Factory-Price-L-Drive-Tunnel-Thruster-with-Fixed-Pitch-Propeller-for-Salesavif 13

The European brand "Dutch Thrustleader" started in Holland in 2007. To meet the growing customers, demand, and company's continuous development, DUTCH THRUSTLEADER MARINE PROPULSION(JIANGSU) CO., LTD was founded in 2017. This company houses the R&D, engineering and manufacturing using the high developed Chinese manufacturing resources.

Our company's production area is around 10000 square meters and is equipped with a specialized assembly and testing workshop. It is certified with a GB/T19001-2016/IS09001, 2015 CCS quality system certification and a BV-Factory Accreditation certificate. Our R&D center is supported with two postdoctoral professor advisors, dozens of European and Chinese senior engineers.

We design and manufacture Tunnel thrusters, Azimuth thrusters, Deck mounted azimuth thrusters, Retractable azimuth thrusters, together with advanced thruster control systems. Our thruster products range with powers from 30kW up to 6000kW. We can integrate and deliver our thruster systems with dynamic positioning systems.

For the renewable market we deliver battery power propulsion systems, hybrid electric propulsion systems, unmanned vessel control systems and on special request pod thrusters.

All propulsion projects can be delivered under approval of major classification societies like: CCS, RMRS, ABS, BV, RINA, NK, DNV-GL, LR, CRS.

Our goal is to make Dutch Thrustleader Marine Propulsion a World Class Brand. Highly customer focused, reliable and innovative.





Why choose us?

  • Our factory manufactures Azimuth Thrusters with superior quality and competitive prices.
  • While maintaining the rapid development of our company, we continue to improve our governance structure, standardize our operations and strengthen our management.
  • Our Azimuth Thrusters are designed to enhance the efficiency and effectiveness of marine operations.
  • In today's era of knowledge economy, people's way of creating wealth has undergone fundamental changes, gradually to the direction of innovative technology.
  • Customers can rely on us for the best Azimuth Thruster products on the market.
  • People-orientated and high quality are the core values of our company, to which we have always adhered and as our belief in continuous progress.
  • Our Azimuth Thrusters are manufactured using the latest technology and best practices.
  • The company adheres to the tenet of "Quality First, Credit First, Service First", motivated by scientific and reasonable innovation and development, based on customer satisfaction and honest service, and earnestly strives to build itself into a first-class Rainproof And Fireproof Azimuth Thruster manufacturer.
  • Customers can trust in the quality and performance of our Azimuth Thruster products.
  • Our Rainproof And Fireproof Azimuth Thruster has sufficient supply, rich specifications, high quality and competitive price.

Introducing the Rainproof And Fireproof Azimuth Thruster! This innovative product is designed to withstand extreme weather conditions and provide exceptional performance in various marine environments. Here are some key aspects of our product that will surely attract merchants:



**1. Superior Design:** Our Rainproof And Fireproof Azimuth Thruster is meticulously engineered to deliver optimal performance in challenging conditions. With a robust design and high-quality materials, this thruster offers unmatched durability and reliability.



**2. Advanced Technology:** Equipped with the latest technology, our azimuth thruster ensures smooth and efficient operation. Whether maneuvering through rough waters or navigating tight spaces, this thruster delivers superior control and precision.



**3. Weather-Resistant:** Designed to be rainproof and fireproof, our azimuth thruster can withstand harsh weather conditions without compromising performance. This feature makes it ideal for use in various marine applications, providing peace of mind to merchants and their customers.



**4. Enhanced Safety:** Safety is a top priority for us, which is why our azimuth thruster is built to meet strict safety standards. With advanced safety features and reliable performance, merchants can trust that their vessels are in good hands with our product.



**5. Easy Installation:** Our azimuth thruster is designed for easy installation, saving merchants time and money on installation costs. With a user-friendly design and detailed instructions, merchants can quickly integrate this thruster into their vessels without hassle.



**6. Versatile Application:** Whether for commercial or recreational vessels, our azimuth thruster offers versatile application. From cargo ships to luxury yachts, this thruster can enhance maneuverability and performance in a wide range of marine environments.



**7. Exceptional Performance:** With a powerful motor and precision engineering, our azimuth thruster delivers exceptional performance in all conditions. Merchants can rely on this thruster to enhance the efficiency and control of their vessels, giving them a competitive edge in the market.



**8. Competitive Pricing:** Despite its advanced features and high-quality construction, our azimuth thruster is competitively priced to offer merchants excellent value for their investment. With a lower total cost of ownership, merchants can maximize their return on investment with our product.



In conclusion, the Rainproof And Fireproof Azimuth Thruster is a top-of-the-line product that offers superior performance, durability, and reliability in various marine applications. With its advanced technology, weather-resistant design, and competitive pricing, this thruster is sure to attract merchants looking for a high-quality solution for their vessels. Upgrade your vessel's performance and safety with our azimuth thruster today!
