Basic Info.
| Model NO. | TLAT1000WM-B |
| Material | Cu3 or SS316 |
| Blades | 3,4,5 or 7 |
| Certification | ISO90012000, BV |
| Transport Package | Wooden Box |
| Trademark | Thrustleader |
| Origin | China |
| HS Code | 8487100000 |
| Production Capacity | Over 100sets/ Year |
Product Description
Basic Info.
| Model No. | TLAT | Blade Quantity | 3,4,5 or 7 |
| Driven Type | E-motor/Hydraulic motor/Diesel engine | Installation type | L-Drive,Z-Drive, Flexible Installation |
| Lead time | 1-5 months | Certificate | CCS/DNV-GL/ABS/BV/RINA/LR/CR/RMRS |
| Transport package | Wooden box | Weight | 300-3000kg |
| Trademark | Thrustleader | Orginal | Jiangsu, China |
| HS Code | 8487100000 | Produce Capacity | Over 100 sets per year |
The azimuth thruster is designed to create thrust for propulison in 360° direction to support maneuvering operations for navigation and/ or position keeping. Propeller could be driven by electric motor, hydraulic motor and diesel engine.
Fixed pitch and controllable pictch propellers could be chosen according to your requirement.
Features
Compact design and reliable performance
Propeller can steer in any direction of 360°above the water level.
Propeller can be driven by electric motor, diesel engine and hydraulic motor.
The diameter of propeller is up to 3.3 meters.
Hydraulic system is available.
Nozzle is optional.
L-drive or Z drive or flexible installation is optional.
Fixed or varied pitch is optional.
Retractable type is optional.
Application
Typical applications for electric propulsion ship, hybrid ship, unmanned interlligent ship, ferry, tourist ship, deluxe passager ship, pilot vessel and so on.
Specifications

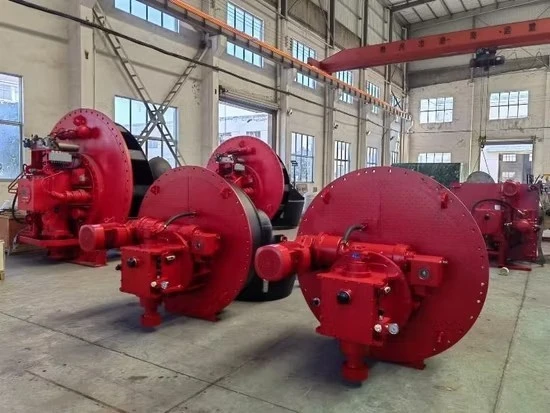

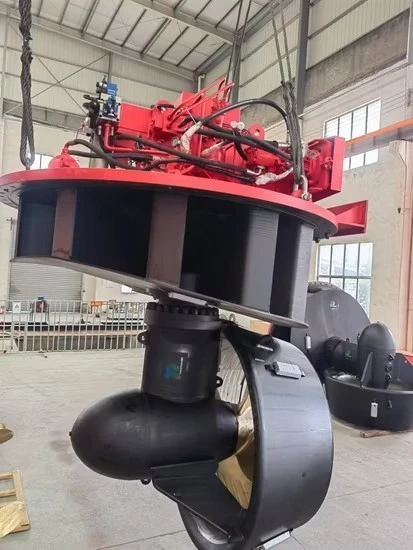

Well Mounted Azimuth Thruster
| Type | Max power (kW) | Normal Input speed(rpm) | Propeller Diameter(mm) |
| TLAT50WM | 40 | 1800/1500 | 300-400 |
| TLAT80WM | 60 | 1800/1500 | 400-600 |
| TLAT100WM | 75 | 1800/1500 | 450-800 |
| TLAT150WM | 110 | 1800/1500 | 500-900 |
| TLAT250WM | 185 | 1800/1500/1000 | 800-1100 |
| TLAT350WM | 260 | 1800/1500/1000 | 650-1200 |
| TLAT450WM | 350 | 1800/1500/1000 | 900-1300 |
| TLAT600WM TLAT600WM-CP |
450 | 1800/1500/1000 | 1100-1500 |
| TLAT850WM TLAT850WM-CP |
670 | 1800/1500/1000 | 1300-1650 |
| TLAT1000WM TLAT1000WM-CP |
750 | 1800/1500/1000/750 | 1400-1750 |
| TLAT1200WM TLAT1200WM-CP |
900 | 1500/1000/750 | 1500-1800 |
| TLAT1400WM TLAT1400WM-CP |
1050 | 1500/1000/750 | 1600-1950 |
| TLAT1600WM TLAT1600WM-CP |
1200 | 1500/1000/750 | 1700-2000 |
| TLAT1800WM TLAT1800WM-CP |
1350 | 1500/1000/750 | 1800-2100 |
| TLAT2000WM TLAT2000WM-CP |
1500 | 1000/750 | 1900-2300 |
| TLAT2200WM TLAT2200WM-CP |
1650 | 1000/750 | 2000-2400 |
| TLAT2400WM TLAT2400WM-CP |
1800 | 1000/750 | 2100-2500 |
| TLAT2700WM TLAT2700WM-CP |
2000 | 1000/750 | 2200-2600 |
| TLAT3000WM TLAT3000WM-CP |
2250 | 1000/750 | 2300-2800 |
| TLAT3500WM TLAT3500WM-CP |
2600 | 1000/750 | 2400-3100 |
| TLAT4000WM TLAT4000WM-CP |
3000 | 1000/750 | 2500-3200 |
| TLAT4500WM TLAT4500WM-CP |
3350 | 1000/750 | 2700-3500 |
| TLAT5000WM TLAT5000WM-CP |
3700 | 750 | 3000-3600 |
| TLAT5500WM | 4050 | 750 | 3100-3700 |
| TLAT6000WM | 4450 | 750 | 3200-3800 |
| TLAT7000WM | 5150 | 750 | 3300-4000 |
Remarks: TLATXXX means fixed pitch azimuth thruster type and TLATXXX-CP means controllable pitch azimuth thruster type.
Certificate
About us
Dutch thrustleader marine propulsion(Jiangsu) Co.Ltd. was founded in 2017 as a producing base. Our company houses the R&D, engineering and manufacturing using the high developed Chinese manufaturing resources.
Our company's production area is around 10000 square meters and is equipped with a specialized assembly and testing workshop. It is certified with a GB/T19001-2016/IS09001, 2015 CCS quality system certification and a BV-Factory Accreditation certificate. Our R&D center is supported with two postdoctoral professor advisors, dozens of European and Chinese senior engineers.
We design and manufacture Tunnel thrusters, Azimuth thrusters, Deck mounted azimuth thrusters, Retractable azimuth thrusters, together with advanced thruster control systems. Our thruster products range with powers from 30kW up to 6000kW. We can integrate and deliver our thruster systems with dynamic positioning systems.
For the renewable market we deliver battery power propulsion systems, hybrid electric propulsion systems, unmanned vessel control systems and on special request pod thrusters.
All propulsion projects can be delivered under approval of major classification societies like: CCS, RMRS, ABS, BV, RINA, NK, DNV-GL, LR, CRS.
Our goal is to make Dutch Thrustleader Marine Propulsion a World Class Brand. Highly customer focused, reliable and innovative.
Why choose us?
- Our factory is dedicated to producing Azimuth Thrusters that set the industry standard.
- Due to the reliable quality and reasonable price, our CCS Retractable Azimuth Thruster has been strongly promoted by the majority of customers.
- Choose us for Azimuth Thrusters that deliver exceptional performance at a great value.
- We pride ourselves on our commitment to customer satisfaction and our ability to source the best products at the most competitive prices.
- We are committed to continuous improvement in our Azimuth Thruster products and services.
- All the employees in factory, store, and office are struggling for one common goal to provide better quality and service.
- Customers trust us to deliver Azimuth Thrusters that are reliable and efficient.
- We have been committed to developing breakthrough technologies and solutions that will influence and advance scientific research and results that can improve people's lives.
- We are known for our commitment to providing top-notch Azimuth Thrusters at affordable prices.
- We are committed to providing exceptional after-sales service and support.

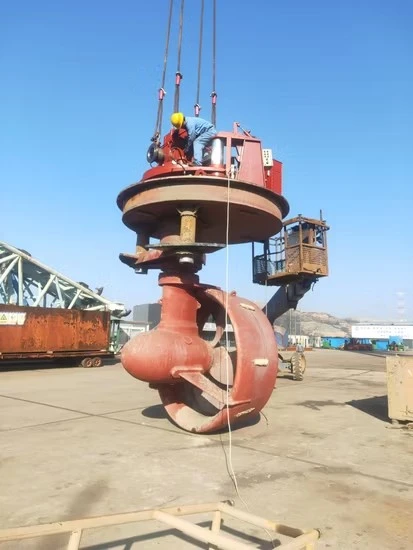

Introducing the CCS Retractable Azimuth Thruster – an innovative and high-performing marine propulsion system designed to meet the evolving needs of the maritime industry.
**Advanced Technology**: Our thruster is equipped with cutting-edge technology, including retractable capabilities that allow for enhanced maneuverability and efficiency in a variety of marine applications.
**High Efficiency**: The CCS Retractable Azimuth Thruster offers superior efficiency, allowing vessels to navigate through tight spaces and challenging conditions with ease.
**Durable and Reliable**: Built to withstand the harsh marine environment, our thruster is made from high-quality materials that ensure long-lasting performance and reliability.
**Easy Installation**: Designed for simple and straightforward installation, the CCS Retractable Azimuth Thruster can be easily integrated into existing marine systems, saving time and costs for our customers.
**Customizable Options**: We offer a range of customizable options for our thruster, allowing merchants to tailor the product to their specific needs and requirements.
**Cost-Effective Solution**: Our thruster provides a cost-effective solution for merchants, offering top-of-the-line performance at a competitive price point.
**Global Reach**: With our manufacturing base in China, we are able to provide our products to merchants worldwide, ensuring prompt delivery and excellent customer service.
**Certified Quality**: The CCS Retractable Azimuth Thruster is certified by the China Classification Society (CCS), guaranteeing compliance with industry standards and regulations.
**Technical Support**: Our team of experienced engineers and technicians is available to provide technical support and guidance to merchants, ensuring smooth integration and operation of our thruster.
**Environmental Friendliness**: Our thruster is designed with environmental sustainability in mind, offering low emissions and minimal impact on marine ecosystems.
In conclusion, the CCS Retractable Azimuth Thruster is a top-of-the-line marine propulsion system that combines advanced technology, efficiency, durability, and reliability to meet the needs of merchants worldwide. Contact us today to learn more about how our thruster can benefit your marine operations.
Hot Tags: ccs retractable azimuth thruster, China ccs retractable azimuth thruster manufacturers, suppliers, factory, Container Boat Azimuth Thruster, Counter Rotating Propellers Azimuth Thrusters, Crs Counter Rotating Azimuth Thruster, Diesel Driving Crp Azimuth Thruster, Tugboat Using Well Mounted Azimuth Thruster, Well Mounted Azimuth Thruster Electric Motor Driving

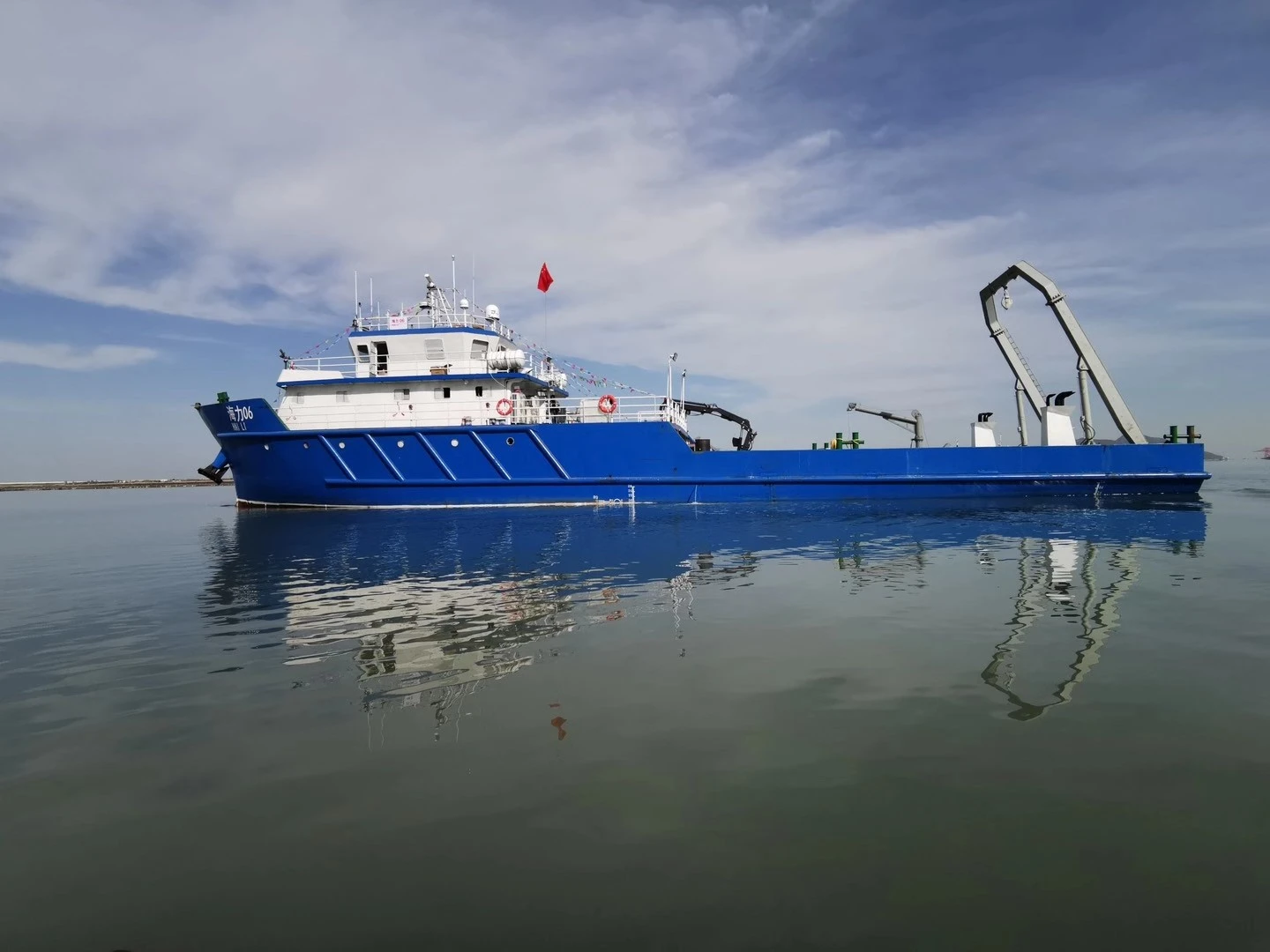

Project case
