Basic Info.
| Model NO. | TLLT80 |
| Material | Cu3 or SS316 |
| Blades | 3,4,5 or 7 |
| Certification | ISO90012000, BV |
| Transport Package | Wooden Box |
| Trademark | Thrustleader |
| Origin | China |
| HS Code | 8487100000 |
| Production Capacity | Over 100sets/ Year |
Packaging & Delivery
| Package Size | 150.00cm * 150.00cm * 520.00cm |
| Package Gross Weight | 260.000kg |
Product Description
Basic Info.
| Model No. | TCLT/TLTT/TLTT-CP | Blade Features | Fixed Pitch or Controllable Pitch | |
| Driven Type | E-motor/Hydraulic motor/Diesel engine | Installation type | L-Drive,Z-Drive,Flexible Installation | |
| Lead time | 1-3 months | Certificate | CCS/DNV-GL/ABS/BV/RINA/LR/CR/RMRS | |
| Transport package | Wooden box | Weight | 300-3000kg | |
| Trademark | Thrustleader | Orginal | Jiangsu, China | |
| HS Code | 8487100000 | Produce Capacity | Over 100 sets per year |

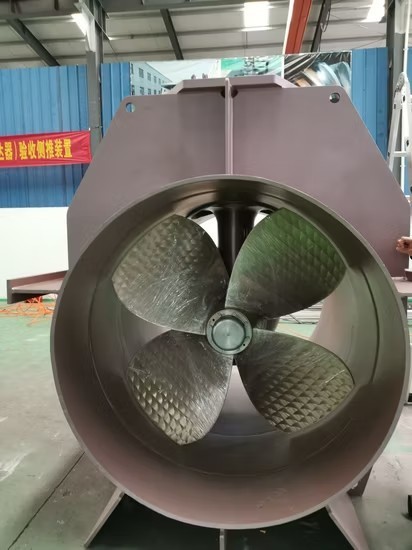

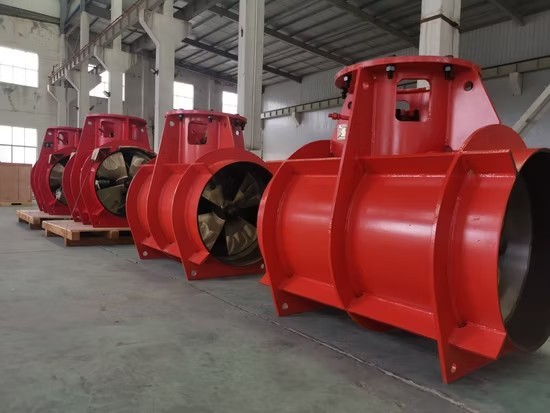

The tunnel thruster is installed in the bow and stern of the vessel to create transverse thrust. Propeller could be driven by electric motor, hydraulic motor and diesel engine. The driving part in assebled in the whole tunnel structure.
The CRP tunnel thruster making the size of gear and lower box significantly smaller, and the lower gearbox tends to streamline, reducing the flow resisitance and noise.
The counter rotating propellers greatly reduce the bearing load and improve the safety and reliability of thruster operation.
Features
The max power could be reached 3200kW.
The max thrust could be arrived 470KN.
Can be driven by electirc motor, hydraulic motor and diesel engine.

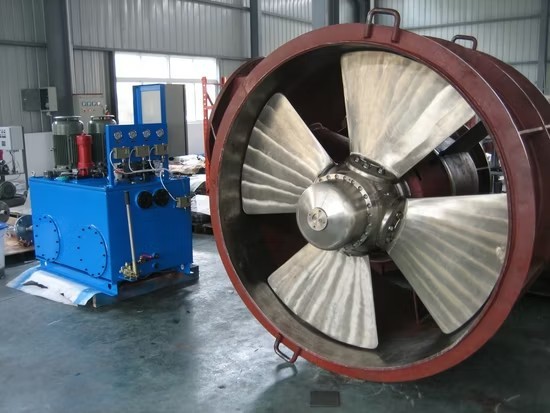

Fixed pitch and controllable pitch can be chosen.
The diameter of propeller could be reached 3.3m.
Application
Typical applications for electric propulsion ship, hybrid ship, marine surveillance vessel, unmanned interlligent ship, ferry, tourist ship, deluxe passager ship, container vessel, fishing vessel, LPG carrier, LNG carrier, PSV, AHTS, OSV, navy vessel and so on.
Specifications
Single Propeller Tunnel Thruster
| Type | Max power(kW) | Propeller Diameter(mm) |
Inner Tunnel Diameter(mm) | Tunnel Thickness(mm) | Tunnel Length(mm) | Max Thrust(KN) |
| TLTT80 | 200 | 800 | 825 | 15 | 920 | 30 |
| TLTT90 | 280 | 900 | 930 | 15 | 920 | 42 |
| TLTT110 TLTT-110-CP |
375 | 1100 | 1130 | 15 | 1400 | 60 |
| TLTT135 TLTT135-CP |
560 | 1350 | 1378 | 16 | 2000 | 84 |
| TLTT150 TLTT150-CP |
680 | 1500 | 1535 | 25 | 2000 | 102 |
| TLTT165 TLTT165-CP |
750 | 1650 | 1685 | 25 | 2000 | 112 |
| TLTT185 TLTT185-CP |
950 | 1850 | 1890 | 25 | 2000 | 152 |
| TLTT200 TLTT200-CP |
1300 | 2000 | 2040 | 25 | 2100 | 195 |
| TLTT225 TLTT225-CP |
1560 | 2250 | 2290 | 25 | 2400 | 235 |
| TLTT250 TLTT250-CP |
1750 | 2500 | 2550 | 30 | 2800 | 262 |
| TLTT265 TLTT265-CP |
2050 | 2650 | 2700 | 30 | 2800 | 306 |
| TLTT285 TLTT285-CP |
2450 | 2800 | 2845 | 30 | 2850 | 368 |
| TLTT-300 TLTT300-CP |
2800 | 3000 | 3060 | 40 | 3100 | 420 |
| TLTT-330 TLTT330-CP |
3150 | 3300 | 3360 | 40 | 3400 | 472 |
Remarks: TLTTXXX means single fixed propeller tunnel thruster type and TLTTXXX-CP means controllable pitch propeller tunnel thruster type.

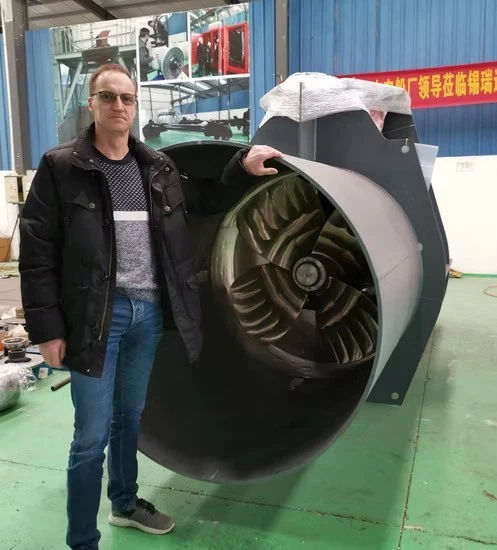

CRP(Counter Rotating Propellers) Tunnel Thruster
| Type | Max power(kW) | Propeller Diameter(mm) |
Inner Tunnel Diameter(mm) | Tunnel Thickness(mm) | Tunnel Length(mm) | Max Thrust(KN) |
| TLCT25 | 18.5 | 225 | 250 | 8 | 450 | 2.8 |
| TLCT37 | 37 | 370 | 400 | 10 | 600 | 6.0 |
| TLCT50 | 90 | 500 | 520 | 12 | 900 | 14.0 |
| TLCT60 | 132 | 600 | 625 | 12 | 1000 | 21.0 |
| TLCT70 | 185 | 700 | 725 | 15 | 1250 | 29.6 |
| TLCT80 | 280 | 800 | 825 | 15 | 1250 | 44.5 |
| TLCT100 | 375 | 1000 | 1030 | 20 | 1400 | 60.0 |
| TLCT120 | 560 | 1200 | 1230 | 20 | 1700 | 88 |
| TLCT150 | 750 | 1500 | 1535 | 25 | 2000 | 120 |
| TLCT165 | 950 | 1650 | 1685 | 25 | 2100 | 150 |
| TLCT185 | 1300 | 1850 | 1885 | 25 | 2400 | 206 |
| TLCT200 | 1560 | 2000 | 2040 | 30 | 2600 |
248 |
Certificate
About us
The European brand "Dutch Thrustleader" started in Holland in 2007. To meet the growing customers, demand, and company's continuous development, DUTCH THRUSTLEADER MARINE PROPULSION(JIANGSU) CO., LTD was founded in 2017. This company houses the R&D, engineering and manufacturing using the high developed Chinese manufacturing resources.
Our company's production area is around 10000 square meters and is equipped with a specialized assembly and testing workshop. It is certified with a GB/T19001-2016/IS09001, 2015 CCS quality system certification and a BV-Factory Accreditation certificate. Our R&D center is supported with two postdoctoral professor advisors, dozens of European and Chinese senior engineers.
We design and manufacture Tunnel thrusters, Azimuth thrusters, Deck mounted azimuth thrusters, Retractable azimuth thrusters, together with advanced thruster control systems. Our thruster products range with powers from 30kW up to 6000kW. We can integrate and deliver our thruster systems with dynamic positioning systems.
For the renewable market we deliver battery power propulsion systems, hybrid electric propulsion systems, unmanned vessel control systems and on special request pod thrusters.
All propulsion projects can be delivered under approval of major classification societies like: CCS, RMRS, ABS, BV, RINA, NK, DNV-GL, LR, CRS.
Our goal is to make Dutch Thrustleader Marine Propulsion a World Class Brand. Highly customer focused, reliable and innovative.
Why choose us?
- Customers can expect exceptional service when they choose our Tunnel Thruster products.
- Our team is highly adaptable and can quickly respond to changing market conditions and customer needs.
- Our Tunnel Thruster products are tested rigorously to ensure they meet industry standards.
- Our L-Drive Tunnel Thruster is manufactured under the direction of high quality requirements, standard inspections and rich experience.
- Our factory in China produces Tunnel Thruster products that meet international standards.
- In the development process, our technical strength increasingly improved and becomes more powerful because of the exchanges and cooperation with other excellent manufacturers.
- We take pride in our professional and efficient service.
- Our products are designed to improve the efficiency and productivity of our customers’ businesses.
- We offer competitive pricing without compromising on the quality of our Tunnel Thruster products.
- With strong technical strength, supply and marketing capabilities, our products are widely used and favored.
Introducing the L-Drive Tunnel Thruster, the ultimate innovation in marine technology. This cutting-edge product is designed to provide exceptional maneuverability and control for vessels of all sizes. With its superior performance and durability, the L-Drive Tunnel Thruster is the perfect solution for merchants looking to enhance the capabilities of their marine vessels.
**Efficient and Powerful** - The L-Drive Tunnel Thruster is equipped with a high-efficiency motor that delivers powerful thrust, allowing vessels to navigate through tight spaces and make precise maneuvers with ease. With its advanced technology, this thruster ensures optimal performance in all conditions.
**Durable Construction** - Constructed from high-quality materials, the L-Drive Tunnel Thruster is built to withstand the demands of marine environments. Its robust design ensures long-lasting durability, making it a reliable choice for merchants who require a durable and reliable thruster for their vessels.
**Easy Installation** - The L-Drive Tunnel Thruster is easy to install, allowing merchants to quickly and effortlessly upgrade their vessels with this state-of-the-art technology. With its user-friendly interface, this thruster can be installed with minimal hassle, saving time and effort for merchants.
**Versatile Applications** - The L-Drive Tunnel Thruster is suitable for a wide range of vessels, from small boats to large ships. Its versatile design allows it to be used in various marine applications, providing merchants with flexibility and adaptability in their use of this thruster.
**Enhanced Maneuverability** - With the L-Drive Tunnel Thruster, vessels can achieve enhanced maneuverability, allowing for precise control and navigation in challenging conditions. This thruster enables vessels to respond quickly to changing circumstances, improving overall safety and efficiency on the water.
**Cost-effective Solution** - The L-Drive Tunnel Thruster offers merchants a cost-effective solution for enhancing the performance of their vessels. With its competitive pricing and long-lasting durability, this thruster provides excellent value for money, making it an attractive option for merchants looking to maximize the capabilities of their vessels.
**Reliable Performance** - The L-Drive Tunnel Thruster is designed to deliver consistent and reliable performance, ensuring that merchants can rely on this thruster to meet their operational needs. With its proven track record of performance and durability, this thruster is a trusted choice for merchants seeking a reliable and efficient marine technology solution.
In conclusion, the L-Drive Tunnel Thruster is a must-have product for merchants looking to elevate the performance of their vessels. With its efficient and powerful design, durable construction, easy installation, versatile applications, enhanced maneuverability, cost-effective solution, and reliable performance, this thruster is the perfect choice for merchants seeking to enhance the capabilities of their marine vessels. Upgrade your vessel with the L-Drive Tunnel Thruster and experience the next level of marine technology.
