Basic Info.
| Model NO. | TLTT225-1 |
| Material | Cu3 or SS316 |
| Blades | 3,4,5 or 7 |
| Certification | ISO90012000, BV |
| Transport Package | Wooden Box |
| Trademark | Thrustleader |
| Origin | China |
| HS Code | 8487100000 |
| Production Capacity | Over 100sets/ Year |
Product Description
Basic Info.
| Model No. | TCLT/TLTT/TLTT-CP | Blade Features | Fixed Pitch or Controllable Pitch |
| Driven Type | E-motor/Hydraulic motor/Diesel engine | Installation type | L-Drive,Z-Drive,Flexible Installation |
| Lead time | 1-3 months | Certificate | CCS/DNV-GL/ABS/BV/RINA/LR/CR/RMRS |
| Transport package | Wooden box | Weight | 300-3000kg |
| Trademark | Thrustleader | Orginal | Jiangsu, China |
| HS Code | 8487100000 | Produce Capacity | Over 100 sets per year |

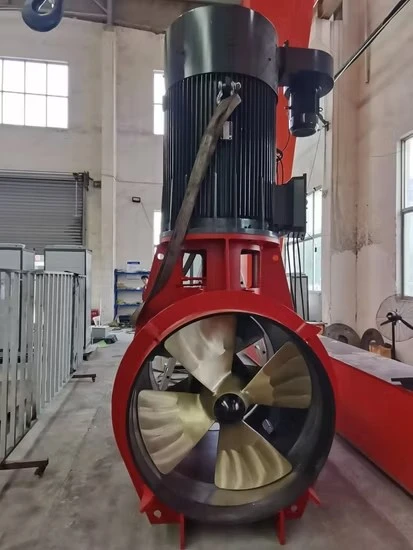

The tunnel thruster is installed in the bow and stern of the vessel to create transverse thrust. Propeller could be driven by electric motor, hydraulic motor and diesel engine. The driving part in assebled in the whole tunnel structure.
The CRP tunnel thruster making the size of gear and lower box significantly smaller, and the lower gearbox tends to streamline, reducing the flow resisitance and noise.
The counter rotating propellers greatly reduce the bearing load and improve the safety and reliability of thruster operation.
Features
The max power could be reached 3200kW.
The max thrust could be arrived 470KN.
Can be driven by electirc motor, hydraulic motor and diesel engine.
Fixed pitch and controllable pitch can be chosen.
The diameter of propeller could be reached 3.3m.
Application
Typical applications for electric propulsion ship, hybrid ship, marine surveillance vessel, unmanned interlligent ship, ferry, tourist ship, deluxe passager ship, container vessel, fishing vessel, LPG carrier, LNG carrier, PSV, AHTS, OSV, navy vessel and so on.
Specifications
Single Propeller Tunnel Thruster
| Type | Max power(kW) | Propeller Diameter(mm) |
Inner Tunnel Diameter(mm) | Tunnel Thickness(mm) | Tunnel Length(mm) | Max Thrust(KN) |
| TLTT80 | 200 | 800 | 825 | 15 | 920 | 30 |
| TLTT90 | 280 | 900 | 930 | 15 | 920 | 42 |
| TLTT110 TLTT-110-CP |
375 | 1100 | 1130 | 15 | 1400 | 60 |
| TLTT135 TLTT135-CP |
560 | 1350 | 1378 | 16 | 2000 | 84 |
| TLTT150 TLTT150-CP |
680 | 1500 | 1535 | 25 | 2000 | 102 |
| TLTT165 TLTT165-CP |
750 | 1650 | 1685 | 25 | 2000 | 112 |
| TLTT185 TLTT185-CP |
950 | 1850 | 1890 | 25 | 2000 | 152 |
| TLTT200 TLTT200-CP |
1300 | 2000 | 2040 | 25 | 2100 | 195 |
| TLTT225 TLTT225-CP |
1560 | 2250 | 2290 | 25 | 2400 | 235 |
| TLTT250 TLTT250-CP |
1750 | 2500 | 2550 | 30 | 2800 | 262 |
| TLTT265 TLTT265-CP |
2050 | 2650 | 2700 | 30 | 2800 | 306 |
| TLTT285 TLTT285-CP |
2450 | 2800 | 2845 | 30 | 2850 | 368 |
| TLTT-300 TLTT300-CP |
2800 | 3000 | 3060 | 40 | 3100 | 420 |
| TLTT-330 TLTT330-CP |
3150 | 3300 | 3360 | 40 | 3400 | 472 |
Remarks: TLTTXXX means single fixed propeller tunnel thruster type and TLTTXXX-CP means controllable pitch propeller tunnel thruster type.
CRP(Counter Rotating Propellers) Tunnel Thruster
| Type | Max power(kW) | Propeller Diameter(mm) |
Inner Tunnel Diameter(mm) | Tunnel Thickness(mm) | Tunnel Length(mm) | Max Thrust(KN) |
| TLCT25 | 18.5 | 225 | 250 | 8 | 450 | 2.8 |
| TLCT37 | 37 | 370 | 400 | 10 | 600 | 6.0 |
| TLCT50 | 90 | 500 | 520 | 12 | 900 | 14.0 |
| TLCT60 | 132 | 600 | 625 | 12 | 1000 | 21.0 |
| TLCT70 | 185 | 700 | 725 | 15 | 1250 | 29.6 |
| TLCT80 | 280 | 800 | 825 | 15 | 1250 | 44.5 |
| TLCT100 | 375 | 1000 | 1030 | 20 | 1400 | 60.0 |
| TLCT120 | 560 | 1200 | 1230 | 20 | 1700 | 88 |
| TLCT150 | 750 | 1500 | 1535 | 25 | 2000 | 120 |
| TLCT165 | 950 | 1650 | 1685 | 25 | 2100 | 150 |
| TLCT185 | 1300 | 1850 | 1885 | 25 | 2400 | 206 |
| TLCT200 | 1560 | 2000 | 2040 | 30 | 2600 |
248 |
Certificate
About us
Dutch thrustleader marine propulsion(Jiangsu) Co.Ltd. was founded in 2017 as a producing base. Our company houses the R&D, engineering and manufacturing using the high developed Chinese manufaturing resources.
Our company's production area is around 10000 square meters and is equipped with a specialized assembly and testing workshop. It is certified with a GB/T19001-2016/IS09001, 2015 CCS quality system certification and a BV-Factory Accreditation certificate. Our R&D center is supported with two postdoctoral professor advisors, dozens of European and Chinese senior engineers.
We design and manufacture Tunnel thrusters, Azimuth thrusters, Deck mounted azimuth thrusters, Retractable azimuth thrusters, together with advanced thruster control systems. Our thruster products range with powers from 30kW up to 6000kW. We can integrate and deliver our thruster systems with dynamic positioning systems.
For the renewable market we deliver battery power propulsion systems, hybrid electric propulsion systems, unmanned vessel control systems and on special request pod thrusters.
All propulsion projects can be delivered under approval of major classification societies like: CCS, RMRS, ABS, BV, RINA, NK, DNV-GL, LR, CRS.
Our goal is to make Dutch Thrustleader Marine Propulsion a World Class Brand. Highly customer focused, reliable and innovative.
Why choose us?
- We are dedicated to providing top-notch customer service along with our Tunnel Thruster products.
- Our mission is to let innovation inject the soul into product design and allow the Bow Thruster to create greater value for customers.
- Our Tunnel Thruster products are tested rigorously to ensure they meet industry standards.
- Relying on our own brand and solution capabilities, we provide customers with high-quality Bow Thruster, solutions and services.
- Our Tunnel Thruster products are known for their durability and reliability.
- At present, we have established and improved a sales network, and we are achieving a mutually beneficial and win-win sales situation with our partners by the excellent quality, professional technology, long-lasting strategic planning, precise marketing, and humanized after-sales service system.
- Our Tunnel Thruster products are manufactured using the latest technology.
- Under the background of the new era, we inject new development opportunities for products through new marketing, operations, and market environments.
- We are a reputable supplier of Tunnel Thruster products with a focus on quality and affordability.
- Is an enterprise and product that does not occupy an advantage in price and dare not neglect in quality is exactly what you need.
**Introduction:**Welcome to our product introduction of the Bow Thruster, a top-quality marine propulsion system designed to enhance the maneuverability and control of ships. As a manufacturer located in China, we specialize in providing high-performance products to merchants worldwide. Our Bow Thruster is a must-have for any vessel looking to improve its handling, efficiency, and safety on the water.
**Key Features:**1. Efficient propulsion system
2. Enhanced maneuverability 3. Easy to install and operate
Our **Bow Thruster** is known for its efficient propulsion system, which provides vessels with the power needed to navigate through tight spaces and challenging water conditions. It is designed to enhance maneuverability, making it easier for ships to make sharp turns and navigate through crowded waterways. The **Bow Thruster** is also incredibly easy to install and operate, making it a cost-effective solution for shipowners looking to improve their vessel's performance.
**Benefits:**1. Improved handling
2. Increased safety 3. Enhanced efficiency
By investing in our **Bow Thruster**, merchants can experience a wide range of benefits, including improved handling, increased safety, and enhanced efficiency on the water. Our **Bow Thruster** is designed to make it easier for ships to maneuver through challenging water conditions, reducing the risk of accidents and enhancing overall safety on board. Additionally, our **Bow Thruster** helps ships operate more efficiently, saving fuel and reducing operating costs in the long run.
**Quality Assurance:**1. Premium materials used
2. Rigorous testing procedures3. Excellent durability
We take pride in the quality of our products and ensure that only premium materials are used in the manufacturing of our **Bow Thruster**. Each unit undergoes rigorous testing procedures to guarantee its performance and durability, making it a reliable choice for merchant vessels of all sizes. Our **Bow Thruster** is built to last, withstanding harsh marine environments and providing merchants with a long-lasting solution for their propulsion needs.
**Customer Support:**1. Dedicated customer service team
2. Technical assistance available3. Fast shipping and delivery
At our company, we are committed to providing excellent customer support to merchants who choose to invest in our **Bow Thruster**. Our dedicated customer service team is available to assist with any questions or technical issues that may arise, ensuring that merchants receive the help they need to maximize the performance of their propulsion system. We offer fast shipping and delivery options to ensure that merchants receive their **Bow Thruster** in a timely manner, allowing them to get back on the water quickly.
**Conclusion:**In conclusion, our **Bow Thruster** is a top-quality marine propulsion system that offers merchants a wide range of benefits, including improved handling, increased safety, and enhanced efficiency. With our commitment to quality assurance and customer support, merchants can trust that they are investing in a reliable and high-performance product. Contact us today to learn more about how our **Bow Thruster** can enhance the performance of your vessel and take your maritime operations to the next level.
Hot Tags: bow thruster, China bow thruster manufacturers, suppliers, factory, Flexible Installation Bow Thruster, Nk Tunnel Thruster, ABS L Drived Tunnel Thruster, Rmrs Z Drived Tunnel Thruster, NK Bow Thtuster, Rina Bow Thruster
