Basic Info.
| Model NO. | TLTT135 |
| Material | Cu3 or SS316 |
| Blades | 3,4,5 or 7 |
| Certification | ISO90012000, BV |
| Transport Package | Wooden Box |
| Trademark | Thrustleader |
| Origin | China |
| HS Code | 8487100000 |
| Production Capacity | Over 100sets/ Year |
Product Description
Basic Info.
| Model No. | TCLT/TLTT/TLTT-CP | Blade Features | Fixed Pitch or Controllable Pitch |
| Driven Type | E-motor/Hydraulic motor/Diesel engine | Installation type | L-Drive,Z-Drive,Flexible Installation |
| Lead time | 1-3 months | Certificate | CCS/DNV-GL/ABS/BV/RINA/LR/CR/RMRS |
| Transport package | Wooden box | Weight | 300-3000kg |
| Trademark | Thrustleader | Orginal | Jiangsu, China |
| HS Code | 8487100000 | Produce Capacity | Over 100 sets per year |

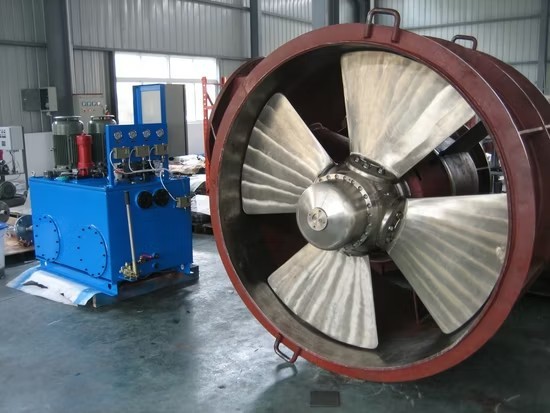

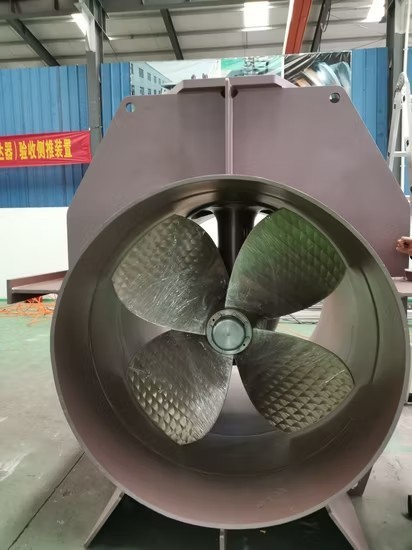

The tunnel thruster is installed in the bow and stern of the vessel to create transverse thrust. Propeller could be driven by electric motor, hydraulic motor and diesel engine. The driving part in assebled in the whole tunnel structure.
The CRP tunnel thruster making the size of gear and lower box significantly smaller, and the lower gearbox tends to streamline, reducing the flow resisitance and noise.

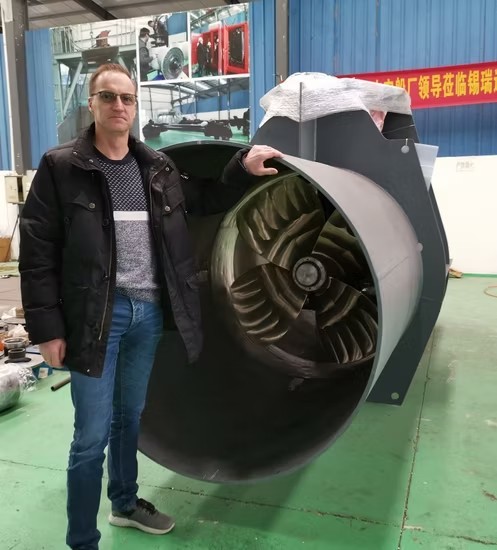

The counter rotating propellers greatly reduce the bearing load and improve the safety and reliability of thruster operation.
Features
The max power could be reached 3200kW.
The max thrust could be arrived 470KN.

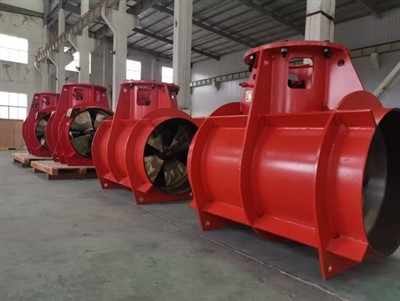

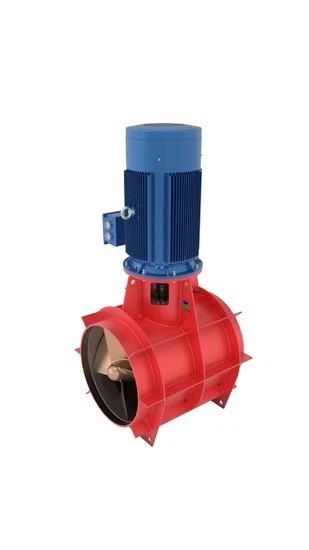

Can be driven by electirc motor, hydraulic motor and diesel engine.
Fixed pitch and controllable pitch can be chosen.
The diameter of propeller could be reached 3.3m.
Application
Typical applications for electric propulsion ship, hybrid ship, marine surveillance vessel, unmanned interlligent ship, ferry, tourist ship, deluxe passager ship, container vessel, fishing vessel, LPG carrier, LNG carrier, PSV, AHTS, OSV, navy vessel and so on.
Specifications
Single Propeller Tunnel Thruster
| Type | Max power(kW) | Propeller Diameter(mm) |
Inner Tunnel Diameter(mm) | Tunnel Thickness(mm) | Tunnel Length(mm) | Max Thrust(KN) |
| TLTT80 | 200 | 800 | 825 | 15 | 920 | 30 |
| TLTT90 | 280 | 900 | 930 | 15 | 920 | 42 |
| TLTT110 TLTT-110-CP |
375 | 1100 | 1130 | 15 | 1400 | 60 |
| TLTT135 TLTT135-CP |
560 | 1350 | 1378 | 16 | 2000 | 84 |
| TLTT150 TLTT150-CP |
680 | 1500 | 1535 | 25 | 2000 | 102 |
| TLTT165 TLTT165-CP |
750 | 1650 | 1685 | 25 | 2000 | 112 |
| TLTT185 TLTT185-CP |
950 | 1850 | 1890 | 25 | 2000 | 152 |
| TLTT200 TLTT200-CP |
1300 | 2000 | 2040 | 25 | 2100 | 195 |
| TLTT225 TLTT225-CP |
1560 | 2250 | 2290 | 25 | 2400 | 235 |
| TLTT250 TLTT250-CP |
1750 | 2500 | 2550 | 30 | 2800 | 262 |
| TLTT265 TLTT265-CP |
2050 | 2650 | 2700 | 30 | 2800 | 306 |
| TLTT285 TLTT285-CP |
2450 | 2800 | 2845 | 30 | 2850 | 368 |
| TLTT-300 TLTT300-CP |
2800 | 3000 | 3060 | 40 | 3100 | 420 |
| TLTT-330 TLTT330-CP |
3150 | 3300 | 3360 | 40 | 3400 | 472 |
Remarks: TLTTXXX means single fixed propeller tunnel thruster type and TLTTXXX-CP means controllable pitch propeller tunnel thruster type.
CRP(Counter Rotating Propellers) Tunnel Thruster
| Type | Max power(kW) | Propeller Diameter(mm) |
Inner Tunnel Diameter(mm) | Tunnel Thickness(mm) | Tunnel Length(mm) | Max Thrust(KN) |
| TLCT25 | 18.5 | 225 | 250 | 8 | 450 | 2.8 |
| TLCT37 | 37 | 370 | 400 | 10 | 600 | 6.0 |
| TLCT50 | 90 | 500 | 520 | 12 | 900 | 14.0 |
| TLCT60 | 132 | 600 | 625 | 12 | 1000 | 21.0 |
| TLCT70 | 185 | 700 | 725 | 15 | 1250 | 29.6 |
| TLCT80 | 280 | 800 | 825 | 15 | 1250 | 44.5 |
| TLCT100 | 375 | 1000 | 1030 | 20 | 1400 | 60.0 |
| TLCT120 | 560 | 1200 | 1230 | 20 | 1700 | 88 |
| TLCT150 | 750 | 1500 | 1535 | 25 | 2000 | 120 |
| TLCT165 | 950 | 1650 | 1685 | 25 | 2100 | 150 |
| TLCT185 | 1300 | 1850 | 1885 | 25 | 2400 | 206 |
| TLCT200 | 1560 | 2000 | 2040 | 30 | 2600 |
248 |
Certificate
About us
Dutch thrustleader marine propulsion(Jiangsu) Co.Ltd. was founded in 2017 as a producing base. Our company houses the R&D, engineering and manufacturing using the high developed Chinese manufaturing resources.
Our company's production area is around 10000 square meters and is equipped with a specialized assembly and testing workshop. It is certified with a GB/T19001-2016/IS09001, 2015 CCS quality system certification and a BV-Factory Accreditation certificate. Our R&D center is supported with two postdoctoral professor advisors, dozens of European and Chinese senior engineers.
We design and manufacture Tunnel thrusters, Azimuth thrusters, Deck mounted azimuth thrusters, Retractable azimuth thrusters, together with advanced thruster control systems. Our thruster products range with powers from 30kW up to 6000kW. We can integrate and deliver our thruster systems with dynamic positioning systems.
For the renewable market we deliver battery power propulsion systems, hybrid electric propulsion systems, unmanned vessel control systems and on special request pod thrusters.
All propulsion projects can be delivered under approval of major classification societies like: CCS, RMRS, ABS, BV, RINA, NK, DNV-GL, LR, CRS.
Our goal is to make Dutch Thrustleader Marine Propulsion a World Class Brand. Highly customer focused, reliable and innovative.
Why choose us?
- We are dedicated to providing top-notch customer service along with our Tunnel Thruster products.
- Every part of the product strives for perfection.
- Customers can trust us to provide cost-effective solutions with our Tunnel Thruster products.
- We are committed to serving every customer with professionalism, providing customers with continuous and solutions for Flexible Installation Tunnel Thruster and bringing endless wealth to customers.
- Customers can expect exceptional service when they choose our Tunnel Thruster products.
- Our products are competitively priced to ensure maximum value for our customers.
- We offer a range of customization options for our Tunnel Thruster products.
- We offer a range of data analysis and reporting services to support our customers' business decision-making.
- Customers can expect nothing but the best when they choose our Tunnel Thruster products.
- We promote better and faster economic and social development, respect and protect the rights and interests of employees, build harmonious labor relations, and pay back to the society with all our heart.
Introducing the **Flexible Installation Tunnel Thruster**, a cutting-edge product that will revolutionize the marine industry. Our thruster is designed for easy installation and maximum efficiency, perfect for boats of all sizes. Its innovative design allows for flexible positioning, making it ideal for various watercraft.
The **Flexible Installation Tunnel Thruster** is crafted with high-quality materials, ensuring durability and long-lasting performance. Its powerful motor generates ample thrust, providing superior maneuverability in any water condition.
Merchants will be impressed by the **Flexible Installation Tunnel Thruster's** compact size, making it ideal for boats with limited space. Its sleek design and easy installation process will save merchants time and money, while enhancing the overall performance of their watercraft.
Our thruster is designed to withstand the harsh marine environment, ensuring reliability and longevity. Merchants can trust that the **Flexible Installation Tunnel Thruster** will perform consistently, even in the most challenging conditions.
The **Flexible Installation Tunnel Thruster** is designed with merchants in mind, offering a versatile and efficient solution for their watercraft needs. Contact us today to learn more about how our thruster can enhance your boat's performance.
