Basic Info.
| Model NO. | TLAT2200WM-1 |
| Material | Cu3 or SS316 |
| Blades | 3,4,5 or 7 |
| Certification | ISO90012000, BV |
| Transport Package | Wooden Box |
| Trademark | Thrustleader |
| Origin | China |
| HS Code | 8487100000 |
| Production Capacity | Over 100sets/ Year |
Product Description
Basic Info.
| Model No. | TLAT | Blade Features | Fixed Pitch or Controllable Pitch |
| Driven Type | E-motor/Hydraulic motor/Diesel engine | Installation type | L-Drive,Z-Drive,Flexible Installation |
| Lead time | 1-5 months | Certificate | CCS/DNV-GL/ABS/BV/RINA/LR/CR/RMRS |
| Transport package | Wooden box | Weight | 300-3000kg |
| Trademark | Thrustleader | Orginal | Jiangsu, China |
| Nozzle | Optional | Mounted Type | Well mounted |
| HS Code | 8487100000 | Produce Capacity | Over 100 sets per year |
The azimuth thruster is designed to create thrust for propulison in 360° direction to support maneuvering operations for navigation and/ or position keeping. Propeller could be driven by electric motor, hydraulic motor and diesel engine.
Fixed pitch and controllable pictch propellers could be chosen according to your requirement.
Features
Compact design and reliable performance
Propeller can steer in any direction of 360°above the water level.
Propeller can be driven by electric motor, diesel engine and hydraulic motor.
The diameter of propeller is up to 3.3 meters.
Hydraulic system is available.
Nozzle is optional.
L-drive or Z drive or flexible installation is optional.
Fixed or varied pitch is optional.
Retractable type is optional.
Application
Typical applications for electric propulsion ship, hybrid ship, unmanned interlligent ship, ferry, tourist ship, deluxe passager ship, pilot vessel and so on.
Specifications
Well Mounted Azimuth Thruster
| Type | Max power (kW) | Normal Input speed(rpm) | Propeller Diameter(mm) |
| TLAT50WM | 40 | 1800/1500 | 300-400 |
| TLAT80WM | 60 | 1800/1500 | 400-600 |
| TLAT100WM | 75 | 1800/1500 | 450-800 |
| TLAT150WM | 110 | 1800/1500 | 500-900 |
| TLAT250WM | 185 | 1800/1500/1000 | 800-1100 |
| TLAT350WM | 260 | 1800/1500/1000 | 650-1200 |
| TLAT450WM | 350 | 1800/1500/1000 | 900-1300 |
| TLAT600WM TLAT600WM-CP |
450 | 1800/1500/1000 | 1100-1500 |
| TLAT850WM TLAT850WM-CP |
670 | 1800/1500/1000 | 1300-1650 |
| TLAT1000WM TLAT1000WM-CP |
750 | 1800/1500/1000/750 | 1400-1750 |
| TLAT1200WM TLAT1200WM-CP |
900 | 1500/1000/750 | 1500-1800 |
| TLAT1400WM TLAT1400WM-CP |
1050 | 1500/1000/750 | 1600-1950 |
| TLAT1600WM TLAT1600WM-CP |
1200 | 1500/1000/750 | 1700-2000 |
| TLAT1800WM TLAT1800WM-CP |
1350 | 1500/1000/750 | 1800-2100 |
| TLAT2000WM TLAT2000WM-CP |
1500 | 1000/750 | 1900-2300 |
| TLAT2200WM TLAT2200WM-CP |
1650 | 1000/750 | 2000-2400 |
| TLAT2400WM TLAT2400WM-CP |
1800 | 1000/750 | 2100-2500 |
| TLAT2700WM TLAT2700WM-CP |
2000 | 1000/750 | 2200-2600 |
| TLAT3000WM TLAT3000WM-CP |
2250 | 1000/750 | 2300-2800 |
| TLAT3500WM TLAT3500WM-CP |
2600 | 1000/750 | 2400-3100 |
| TLAT4000WM TLAT4000WM-CP |
3000 | 1000/750 | 2500-3200 |
| TLAT4500WM TLAT4500WM-CP |
3350 | 1000/750 | 2700-3500 |
| TLAT5000WM TLAT5000WM-CP |
3700 | 750 | 3000-3600 |
| TLAT5500WM | 4050 | 750 | 3100-3700 |
| TLAT6000WM | 4450 | 750 | 3200-3800 |
| TLAT7000WM | 5150 | 750 | 3300-4000 |
Remarks: TLTTXXX means single fixed propeller tunnel thruster type and TLTTXXX-CP means controllable pitch propeller tunnel thruster type.
Certificate
About us
Dutch thrustleader marine propulsion(Jiangsu) Co.Ltd. was founded in 2017 as a producing base. Our company houses the R&D, engineering and manufacturing using the high developed Chinese manufaturing resources.
Our company's production area is around 10000 square meters and is equipped with a specialized assembly and testing workshop. It is certified with a GB/T19001-2016/IS09001, 2015 CCS quality system certification and a BV-Factory Accreditation certificate. Our R&D center is supported with two postdoctoral professor advisors, dozens of European and Chinese senior engineers.
We design and manufacture Tunnel thrusters, Azimuth thrusters, Deck mounted azimuth thrusters, Retractable azimuth thrusters, together with advanced thruster control systems. Our thruster products range with powers from 30kW up to 6000kW. We can integrate and deliver our thruster systems with dynamic positioning systems.
For the renewable market we deliver battery power propulsion systems, hybrid electric propulsion systems, unmanned vessel control systems and on special request pod thrusters.
All propulsion projects can be delivered under approval of major classification societies like: CCS, RMRS, ABS, BV, RINA, NK, DNV-GL, LR, CRS.
Our goal is to make Dutch Thrustleader Marine Propulsion a World Class Brand. Highly customer focused, reliable and innovative.
Why choose us?
- Choose us for Azimuth Thrusters that deliver exceptional performance at a great value.
- We are able to continuously update, iterate and improve product services and work harder to optimize products.
- Count on us for Azimuth Thrusters that are built to last and perform under pressure.
- Welcome to visit us in the near future and sincerely hope to establish a long-term business relationship with your esteemed company. We are always trying the best to supply you Electrical Azimuth Thruster With Fixed Pitch with the most competitive price, best quality and service.
- Our Azimuth Thrusters are manufactured using the latest technology and best practices.
- Our company has established long-term cooperative relations with many enterprises based on the tenet of 'intimate service and sincere friends' with good credit and excellent service.
- Our Azimuth Thruster products are in high demand for their quality and reliability.
- Our company is sincere, faith and morality. Insist on providing exquisite high-quality products and be honest to customers; Adhere to exquisite management, pragmatic to create economic benefits, and be honest to shareholders; Resolutely guarantee salary and welfare, and be honest to employees; Firmly guarantee the interests of relevant parties and be honest to the society!
- Trust our factory to provide reliable and durable Azimuth Thrusters for your needs.
- Our company has been adhering to the business philosophy of 'quality for survival, reputation for development', always regard customer demand and satisfaction as the core, dedicated to create quality products for the majority of new and old customers.
**Introduction:**Our Electrical Azimuth Thruster with Fixed Pitch is a cutting-edge propulsion system designed to provide superior maneuverability and efficiency for a wide range of marine vessels. Built with high-quality materials and advanced technology, this product is the perfect solution for merchants looking to enhance the performance of their ships.
**Key Features:**- **Electrical Operation**: Our azimuth thruster is powered by electricity, providing a clean and efficient propulsion system that minimizes environmental impact.
- **Fixed Pitch Design**: The fixed pitch design of this thruster ensures reliable performance and simple operation, making it easy to integrate into existing vessels.
- **Superior Maneuverability**: With the ability to rotate 360 degrees, our azimuth thruster offers unmatched maneuverability, allowing ships to navigate tight spaces and challenging environments with ease.
- **High-Quality Construction**: Crafted with precision engineering and durable materials, our azimuth thruster is built to withstand the rigors of marine environments and deliver long-lasting performance.
- **Easy Installation**: Designed for simple installation and maintenance, our thruster can be seamlessly integrated into a variety of vessel types without the need for extensive modifications.
- **Wide Range of Applications**: From commercial vessels to luxury yachts, our azimuth thruster is suitable for a diverse range of marine applications, providing versatile propulsion solutions for merchants in various industries.
**Benefits:**- **Improved Efficiency**: By providing precise control and maneuverability, our azimuth thruster helps vessels operate more efficiently, reducing fuel consumption and operational costs.
- **Enhanced Safety**: With its advanced technology and responsive performance, our thruster enhances the safety of vessels, allowing for better control in challenging conditions and emergency situations.
- **Increased Productivity**: The superior maneuverability of our azimuth thruster enables ships to navigate congested ports and busy waterways more effectively, improving productivity and reducing turnaround times.
- **Enhanced Comfort**: The smooth and quiet operation of our thruster minimizes vibrations and noise, providing a more comfortable and enjoyable experience for passengers and crew members.
- **Environmental Sustainability**: As an electrically powered propulsion system, our azimuth thruster helps reduce emissions and minimize impact on the environment, making it a sustainable choice for eco-conscious merchants.
**Specifications:**- **Power Output**: [Insert power output details]
- **Voltage**: [Insert voltage details]- **Propeller Diameter**: [Insert propeller diameter details]
- **Weight**: [Insert weight details]- **Certifications**: [Insert certification details]
- **Customization Options**: [Insert customization options]
In conclusion, our Electrical Azimuth Thruster with Fixed Pitch offers a range of cutting-edge features, benefits, and specifications that make it an attractive and versatile propulsion solution for merchants seeking to enhance the performance of their vessels. With its advanced technology, durable construction, and efficiency, this thruster is sure to meet the needs of a wide range of marine applications. Contact us today to learn more about how our azimuth thruster can elevate the capabilities of your ships and improve your overall operational efficiency.
Hot Tags: electrical azimuth thruster with fixed pitch, China electrical azimuth thruster with fixed pitch manufacturers, suppliers, factory, Azimuth Thruster with Nozzle, IRS Deck Mounted Azimuth Thruster, L Drive Pulling Azimuth Thruster, LR Certificate Retractable Azimuth Thruster, Well Mounted Azimuth Thruster, Z Drive Counter Rotating Azimuth Thruster

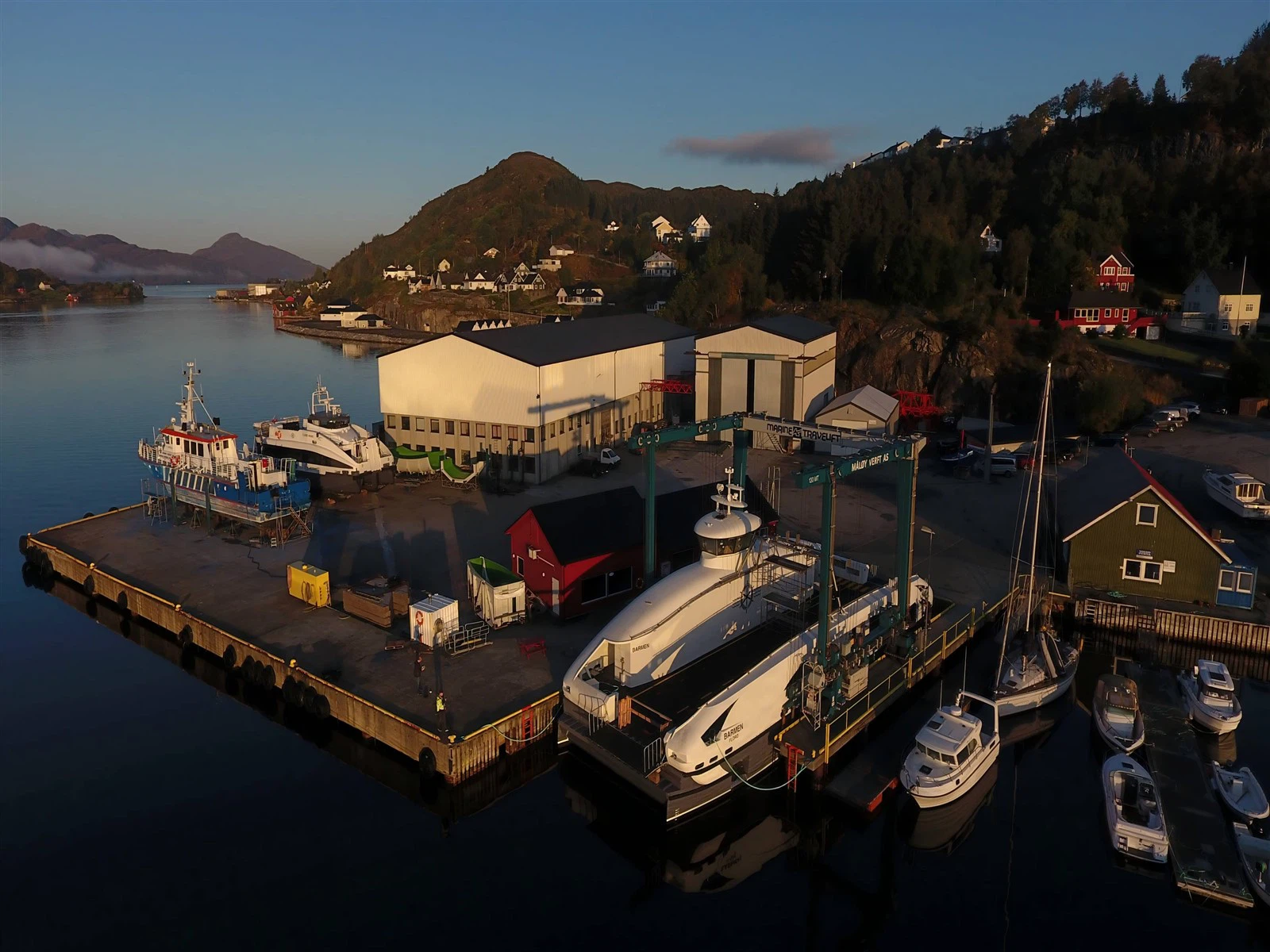

Project case
