Basic Info.
| Model NO. | TLAT3500WM |
| Material | Cu3 or SS316 |
| Blades | 3,4,5 or 7 |
| Certification | ISO90012000, BV |
| Transport Package | Wooden Box |
| Trademark | Thrustleader |
| Origin | China |
| HS Code | 8487100000 |
| Production Capacity | Over 100sets/ Year |
Product Description
Basic Info.
| Model No. | TLAT | Blade Features | Fixed Pitch or Controllable Pitch |
| Driven Type | E-motor/Hydraulic motor/Diesel engine | Installation type | L-Drive,Z-Drive,Flexible Installation |
| Lead time | 1-5 months | Certificate | CCS/DNV-GL/ABS/BV/RINA/LR/CR/RMRS |
| Transport package | Wooden box | Weight | 300-3000kg |
| Trademark | Thrustleader | Orginal | Jiangsu, China |
| Nozzle | Optional | Mounted Type | Well mounted |
| HS Code | 8487100000 | Produce Capacity | Over 100 sets per year |

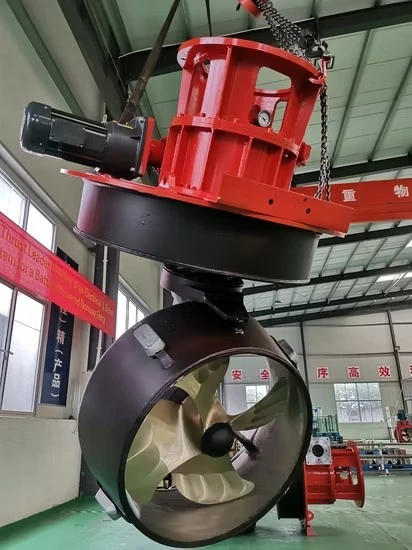

The azimuth thruster is designed to create thrust for propulison in 360° direction to support maneuvering operations for navigation and/ or position keeping. Propeller could be driven by electric motor, hydraulic motor and diesel engine.
Fixed pitch and controllable pictch propellers could be chosen according to your requirement.
Features
Compact design and reliable performance
Propeller can steer in any direction of 360°above the water level.
Propeller can be driven by electric motor, diesel engine and hydraulic motor.
The diameter of propeller is up to 3.3 meters.
Hydraulic system is available.
Nozzle is optional.
L-drive or Z drive or flexible installation is optional.
Fixed or varied pitch is optional.
Retractable type is optional.
Application
Typical applications for electric propulsion ship, hybrid ship, unmanned interlligent ship, ferry, tourist ship, deluxe passager ship, pilot vessel and so on.
Specifications
Well Mounted Azimuth Thruster
| Type | Max power (kW) | Normal Input speed(rpm) | Propeller Diameter(mm) |
| TLAT50WM | 40 | 1800/1500 | 300-400 |
| TLAT80WM | 60 | 1800/1500 | 400-600 |
| TLAT100WM | 75 | 1800/1500 | 450-800 |
| TLAT150WM | 110 | 1800/1500 | 500-900 |
| TLAT250WM | 185 | 1800/1500/1000 | 800-1100 |
| TLAT350WM | 260 | 1800/1500/1000 | 650-1200 |
| TLAT450WM | 350 | 1800/1500/1000 | 900-1300 |
| TLAT600WM TLAT600WM-CP |
450 | 1800/1500/1000 | 1100-1500 |
| TLAT850WM TLAT850WM-CP |
670 | 1800/1500/1000 | 1300-1650 |
| TLAT1000WM TLAT1000WM-CP |
750 | 1800/1500/1000/750 | 1400-1750 |
| TLAT1200WM TLAT1200WM-CP |
900 | 1500/1000/750 | 1500-1800 |
| TLAT1400WM TLAT1400WM-CP |
1050 | 1500/1000/750 | 1600-1950 |
| TLAT1600WM TLAT1600WM-CP |
1200 | 1500/1000/750 | 1700-2000 |
| TLAT1800WM TLAT1800WM-CP |
1350 | 1500/1000/750 | 1800-2100 |
| TLAT2000WM TLAT2000WM-CP |
1500 | 1000/750 | 1900-2300 |
| TLAT2200WM TLAT2200WM-CP |
1650 | 1000/750 | 2000-2400 |
| TLAT2400WM TLAT2400WM-CP |
1800 | 1000/750 | 2100-2500 |
| TLAT2700WM TLAT2700WM-CP |
2000 | 1000/750 | 2200-2600 |
| TLAT3000WM TLAT3000WM-CP |
2250 | 1000/750 | 2300-2800 |
| TLAT3500WM TLAT3500WM-CP |
2600 | 1000/750 | 2400-3100 |
| TLAT4000WM TLAT4000WM-CP |
3000 | 1000/750 | 2500-3200 |
| TLAT4500WM TLAT4500WM-CP |
3350 | 1000/750 | 2700-3500 |
| TLAT5000WM TLAT5000WM-CP |
3700 | 750 | 3000-3600 |
| TLAT5500WM | 4050 | 750 | 3100-3700 |
| TLAT6000WM | 4450 | 750 | 3200-3800 |
| TLAT7000WM | 5150 | 750 | 3300-4000 |
Remarks: TLTTXXX means single fixed propeller tunnel thruster type and TLTTXXX-CP means controllable pitch propeller tunnel thruster type.
Certificate
About us
Dutch thrustleader marine propulsion(Jiangsu) Co.Ltd. was founded in 2017 as a producing base. Our company houses the R&D, engineering and manufacturing using the high developed Chinese manufaturing resources.
Our company's production area is around 10000 square meters and is equipped with a specialized assembly and testing workshop. It is certified with a GB/T19001-2016/IS09001, 2015 CCS quality system certification and a BV-Factory Accreditation certificate. Our R&D center is supported with two postdoctoral professor advisors, dozens of European and Chinese senior engineers.
We design and manufacture Tunnel thrusters, Azimuth thrusters, Deck mounted azimuth thrusters, Retractable azimuth thrusters, together with advanced thruster control systems. Our thruster products range with powers from 30kW up to 6000kW. We can integrate and deliver our thruster systems with dynamic positioning systems.
For the renewable market we deliver battery power propulsion systems, hybrid electric propulsion systems, unmanned vessel control systems and on special request pod thrusters.
All propulsion projects can be delivered under approval of major classification societies like: CCS, RMRS, ABS, BV, RINA, NK, DNV-GL, LR, CRS.
Our goal is to make Dutch Thrustleader Marine Propulsion a World Class Brand. Highly customer focused, reliable and innovative.
Why choose us?
- Our Azimuth Thruster products deliver unmatched performance and durability.
- We have a deep commitment to diversity and inclusion within our organization.
- We are dedicated to providing Azimuth Thrusters that enhance marine operations.
- Our team consists of experienced professionals who are knowledgeable about the industry.
- Our Azimuth Thrusters are built to last and withstand tough conditions.
- It is our excellent corporate culture formed in the struggle that has enabled our company to achieve stable, rapid and sustainable development.
- Our factory's dedication to quality ensures that our Azimuth Thruster products are second to none.
- We are one of the largest 100% manufacturers in China.
- Our Azimuth Thrusters are designed for efficiency and durability.
- Our company is committed to the green concept of energy saving and low carbon production with a new series of Azimuth Thruster With Nozzle.
Introducing the Azimuth Thruster With Nozzle, a top-quality marine propulsion system designed to enhance the performance of vessels. Our thruster is meticulously crafted using state-of-the-art technology and premium materials, ensuring durability and reliability in the toughest maritime conditions.
**Innovative Design:** The Azimuth Thruster With Nozzle features an innovative design that maximizes efficiency and maneuverability. The integrated nozzle provides enhanced thrust control, allowing for seamless navigation in tight spaces and rough waters.
**Powerful Performance:** This thruster is engineered to deliver unparalleled performance, with high thrust output and precise control. It enables smooth and responsive operation, making it ideal for a wide range of marine applications.
**Durable Construction:** Crafted from high-quality materials, the Azimuth Thruster With Nozzle is built to withstand the harsh marine environment. It is corrosion-resistant and designed for long-lasting performance, ensuring minimal maintenance and optimal reliability.
**Easy Installation:** Our thruster is designed for easy installation and integration with existing marine systems. It comes with comprehensive instructions and support, making it convenient for merchants to incorporate into their vessels without any hassle.
**Cost-Effective Solution:** The Azimuth Thruster With Nozzle offers a cost-effective solution for merchants looking to enhance the performance of their vessels. Its efficient design and durable construction ensure long-term value and savings on maintenance costs.
**Customization Options:** We understand that every vessel is unique, which is why we offer customization options for our thruster to meet the specific requirements of our merchants. Whether it's size, power, or any other feature, we can tailor our product to suit your needs.
**Reliable Support:** At our company, we prioritize customer satisfaction and provide reliable support to our merchants. Our team of experts is available to assist with any inquiries, technical support, or after-sales service, ensuring a smooth and hassle-free experience.
**Certified Quality:** The Azimuth Thruster With Nozzle meets strict quality standards and certifications, guaranteeing its safety and performance. Merchants can trust in the quality and reliability of our product, backed by our commitment to excellence.
**Global Reach:** As a manufacturer based in China, we have a global reach and supply our products to merchants in countries outside of China. Our efficient logistics and distribution network ensure timely delivery to our customers worldwide.
**Environmentally Friendly:** We are committed to sustainability and environmentally friendly practices in our manufacturing process. The Azimuth Thruster With Nozzle is designed to minimize emissions and reduce environmental impact, making it a responsible choice for environmentally conscious merchants.
In conclusion, the Azimuth Thruster With Nozzle is a superior marine propulsion system that offers innovative design, powerful performance, durable construction, and cost-effective solutions. With easy installation, customization options, reliable support, certified quality, global reach, and environmental sustainability, our thruster is the ideal choice for merchants looking to enhance their vessels' performance. Contact us today to learn more about our product and how it can benefit your maritime operations.
